Accessories

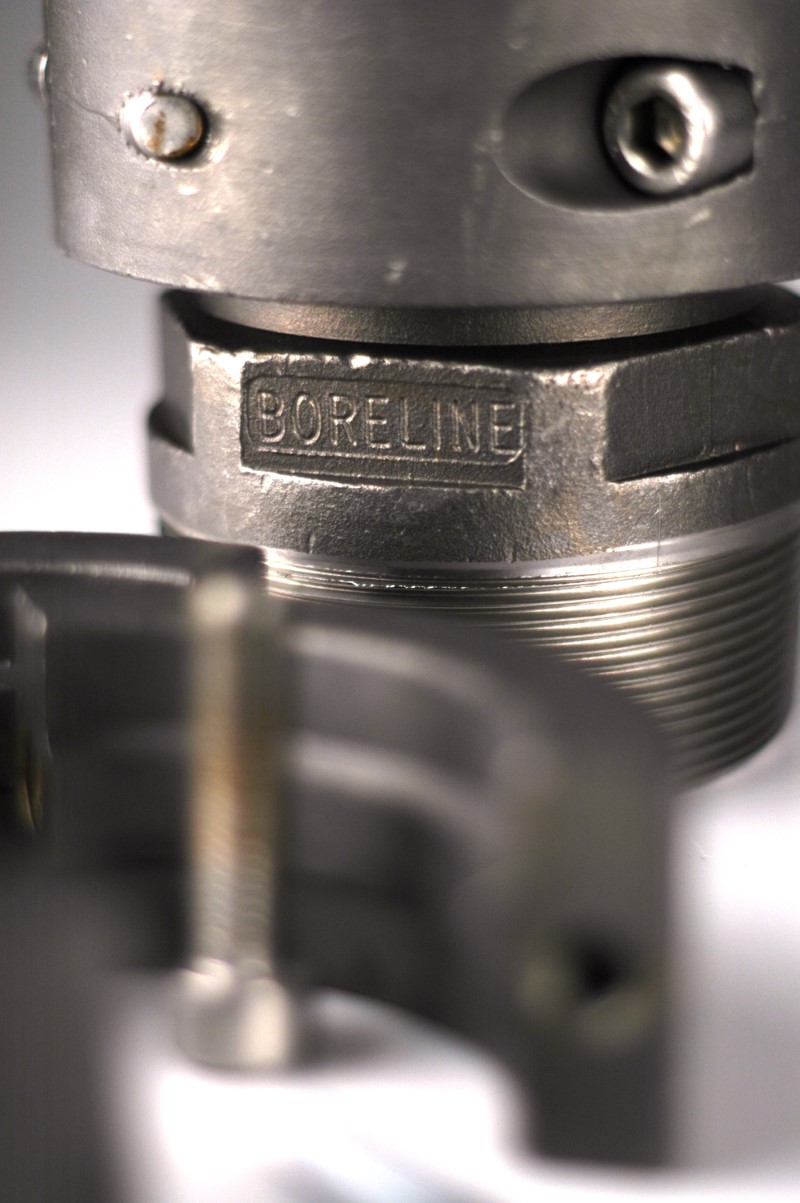

Boreline® Coupling

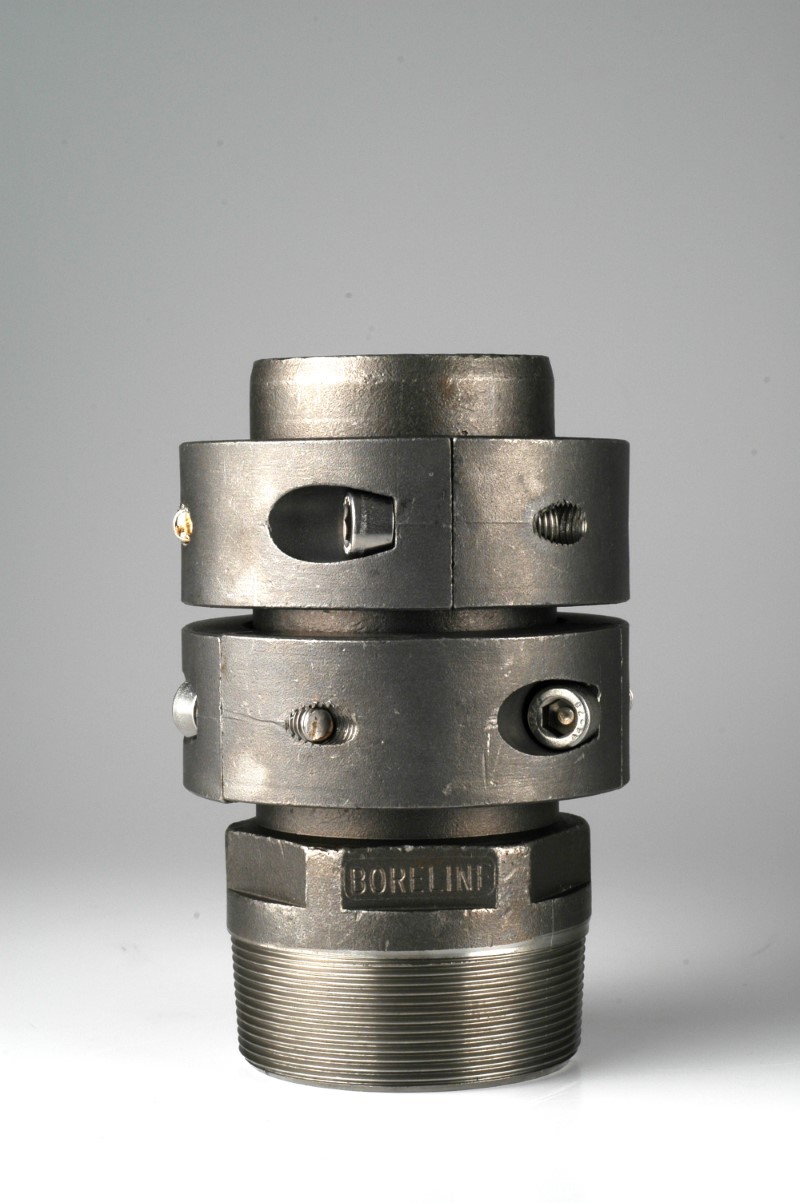

The Boreline® coupling is supplied in Stainless Steel, with 316 or 304 being the standard material used for Boreline® ® couplings. The Boreline® Coupling can also be supplied in Duplex materials. All Boreline® couplings are fully re-usable and each comprise of a coupling body and two outer fastening rings. The Rings are split into three equal parts. The Boreline® coupling body hosetail contains ridges over which the hose fits and into which the rings tightened. The couplings are available with either BSP or NPT male thread for attachment to the pump at one end and to the head works at the surface. The Boreline® couplings can also be adapted to a Flange. The flange specification would need to be specified. The Boreline® coupling can also be adapted to fit a break off plug.

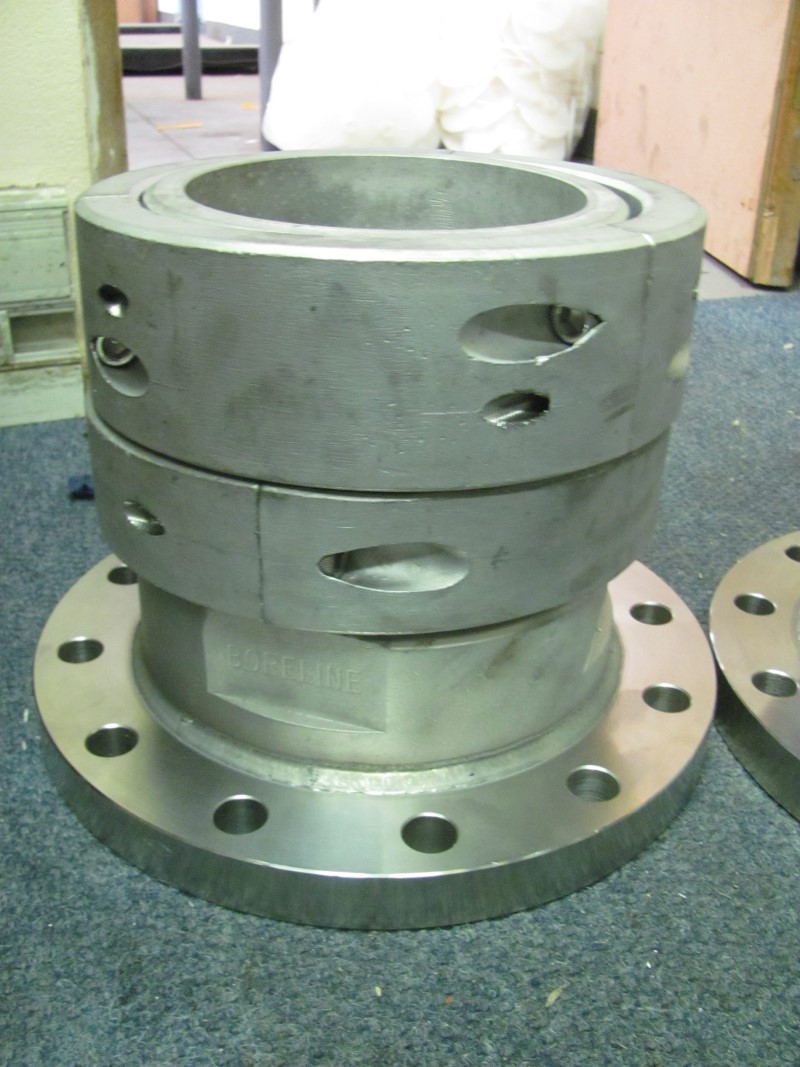

8 Inch Flanged Boreline® Coupling

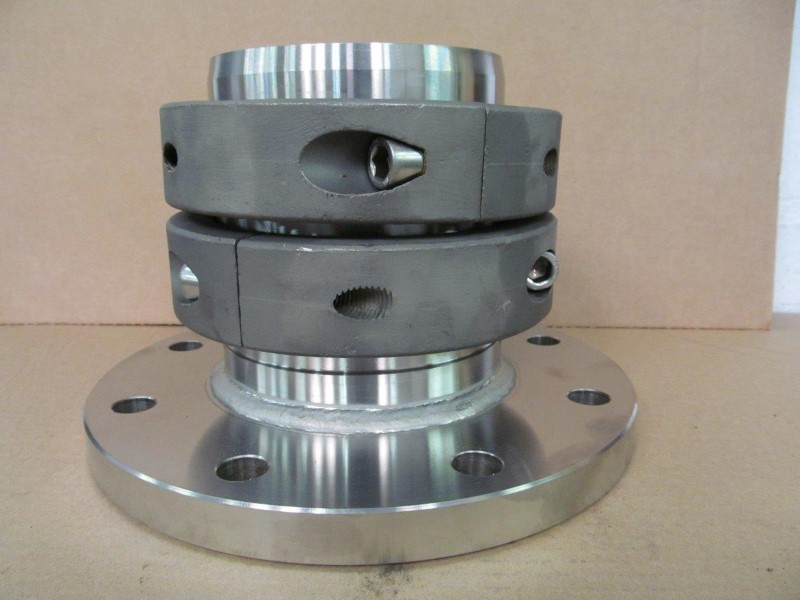

Flanged Boreline® Coupling

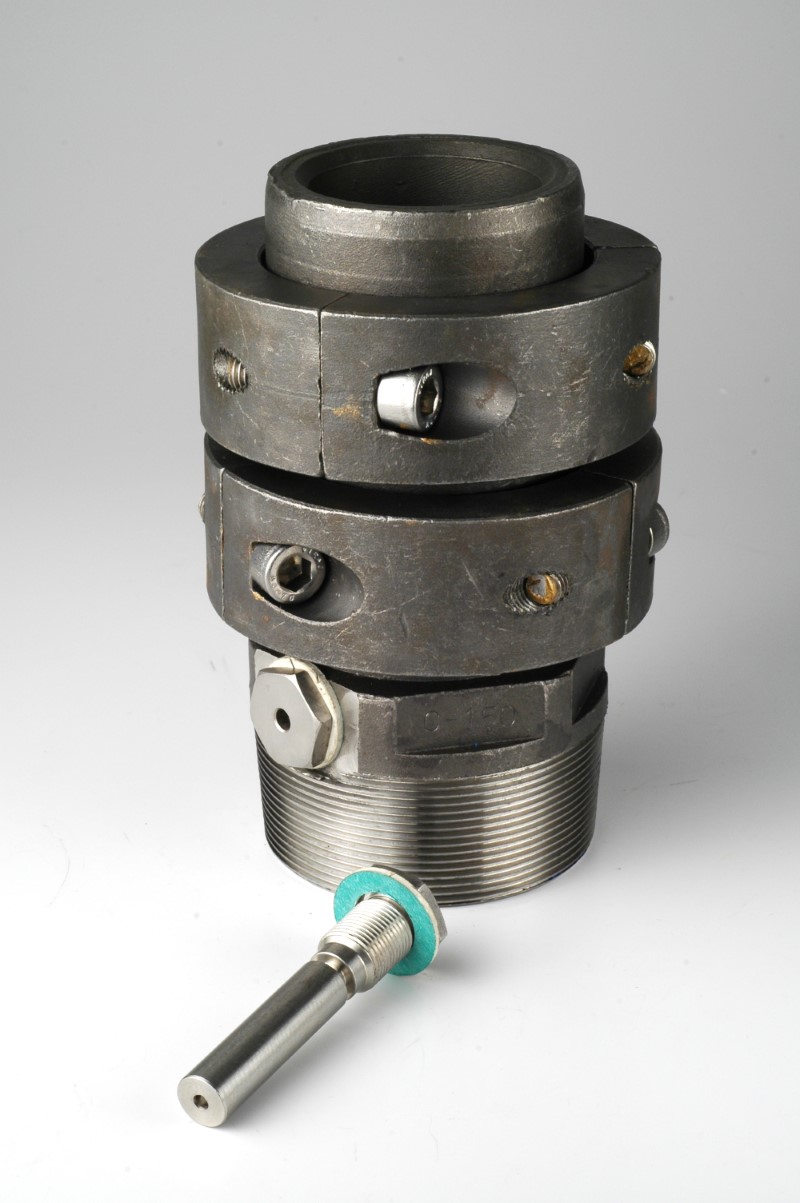

Boreline® Coupling with break-off plug
Boreline® Coupling
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-coupling
Print Page

Boreline® GRN Coupling

The Boreline® GRN Coupling has been developed to offer a cheaper alternative for fastening the Boreline® to the pump or wellhead, for specifically shallower depth setting. Benefits

  • Quick, easy, inexpensive installation and retrieval
  • Fully resistant to corrosion, scaling & biological growth
  • Light weight
  • Excellent hydraulic performance

Water pH      4 – 9 Max Operating Temp   40°C GRN Coupling Specifications:

Nominal Size 1″ 1¼” 1½” 2″ 2.5″ 3″ 4″
Inside Diameter 24mm 32mm 38mm 50mm 65mm 76mm 102mm
Maximum set depth 100m 100m 100m 100m 75m 75m 75m
Operating Pressure 12 bar 12 bar 12 bar 12 bar 8 bar 8 bar 8 bar
Maximum Working Load 250 kg 400 kg 500 kg 700 kg 800 kg 900 kg 1000 kg
Minimum Well Diameter 76mm 102mm 102mm 102mm 152mm 152mm 203mm
Coupling Torque Settings 5Nm 5Nm 5Nm 10Nm 15Nm  15Nm  20Nm
Weight Per Metre 0.24 kg 0.3 kg 0.38 kg 0.55 kg 0.85 kg 0.95 kg 1.4 kg

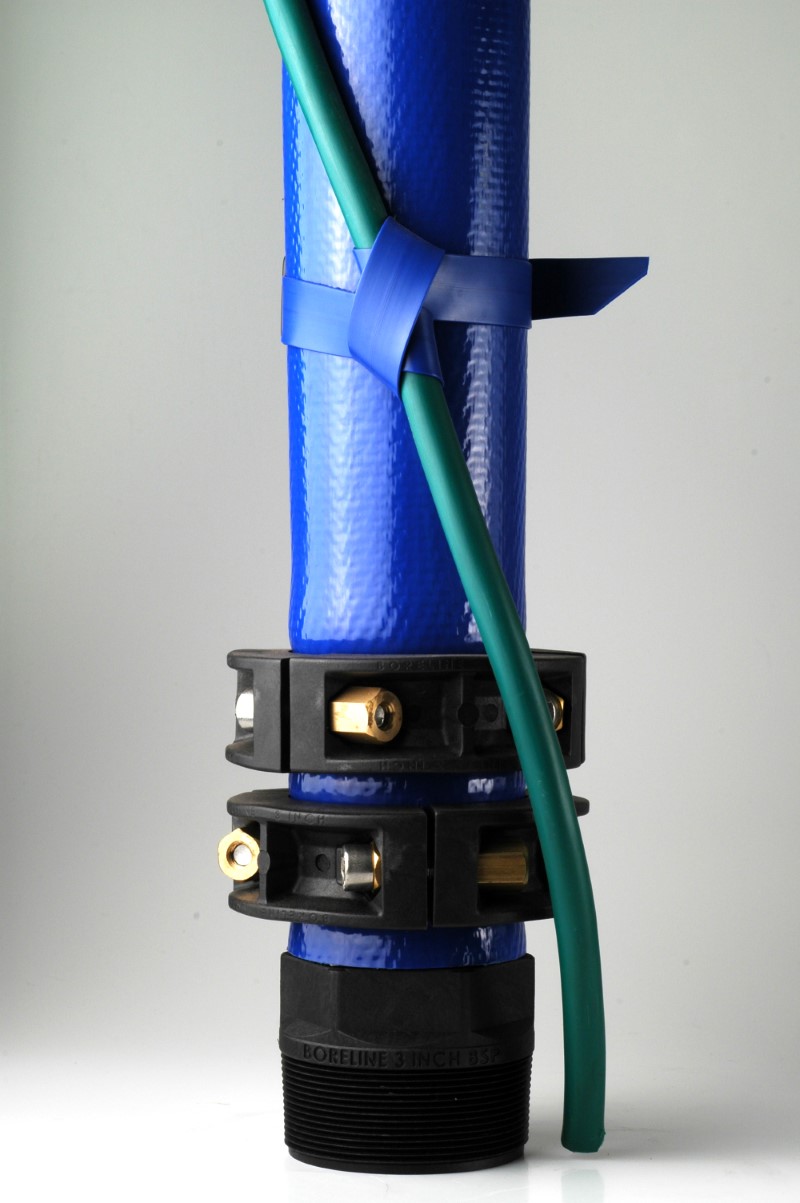

Boreline® with GRN Boreline® coupling
GRN Borline® Couplings

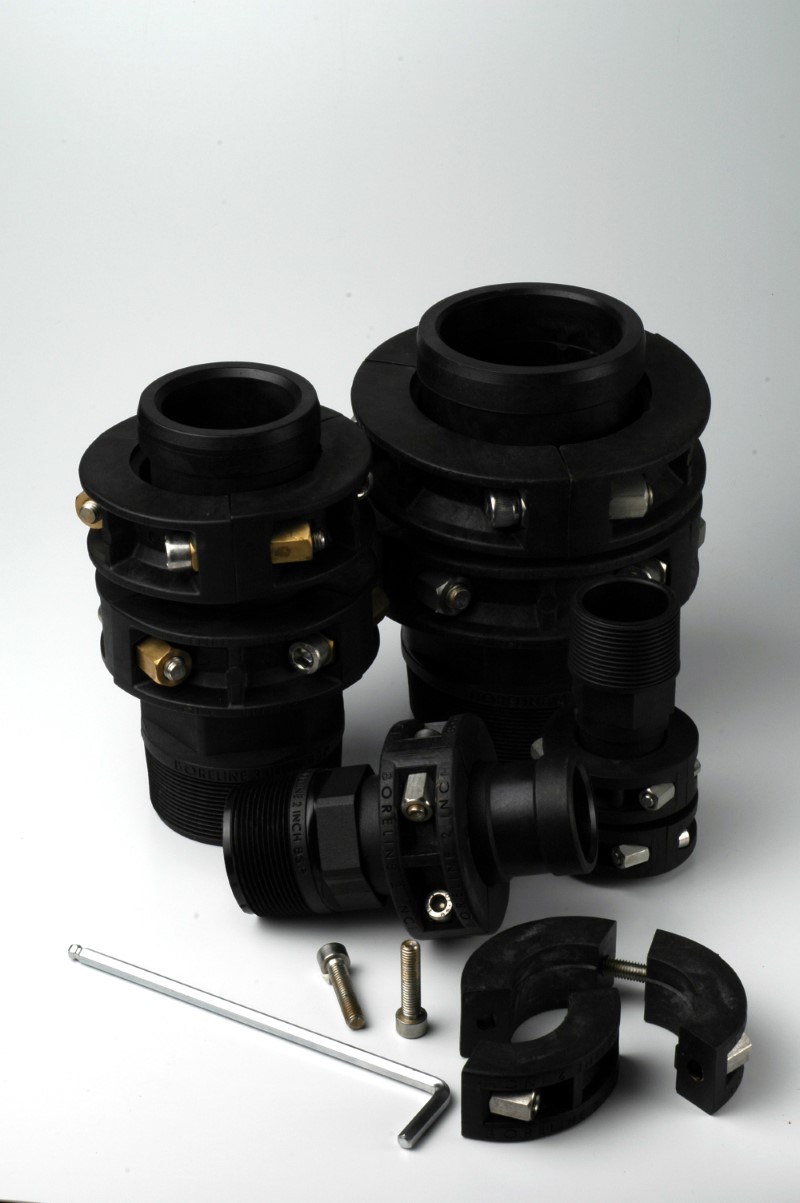

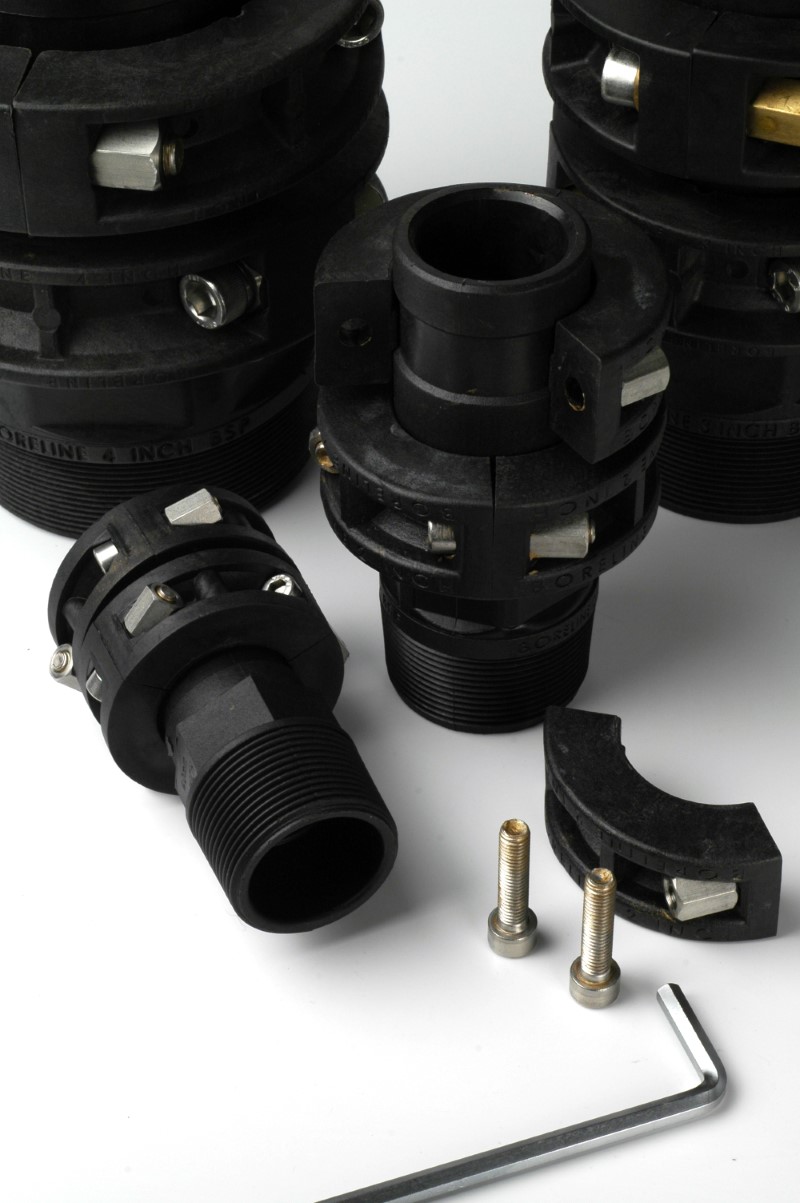

GRN Boreline® Couplings
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-grn-coupling
Print Page

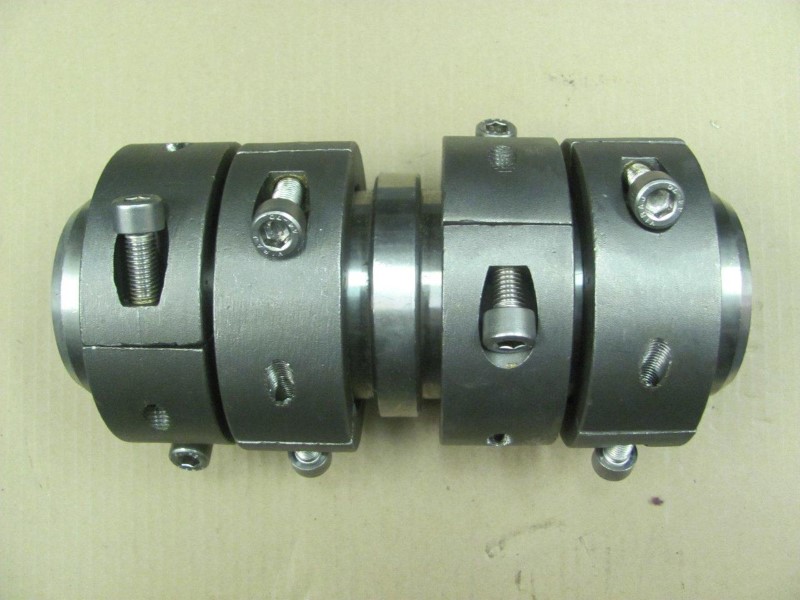

Boreline® Joiner

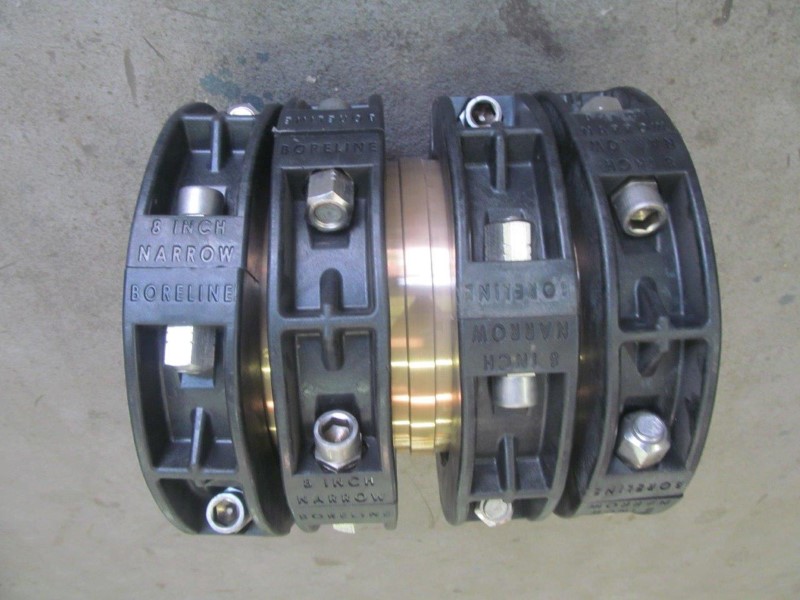

The Boreline® joiner is utilised to repair the Boreline® if it is damaged in any way or to extend the length of the Boreline® installation but still to remain within the max recommended specification shown here. Standard material is either 316SS or Bronze body with 304SS ring.

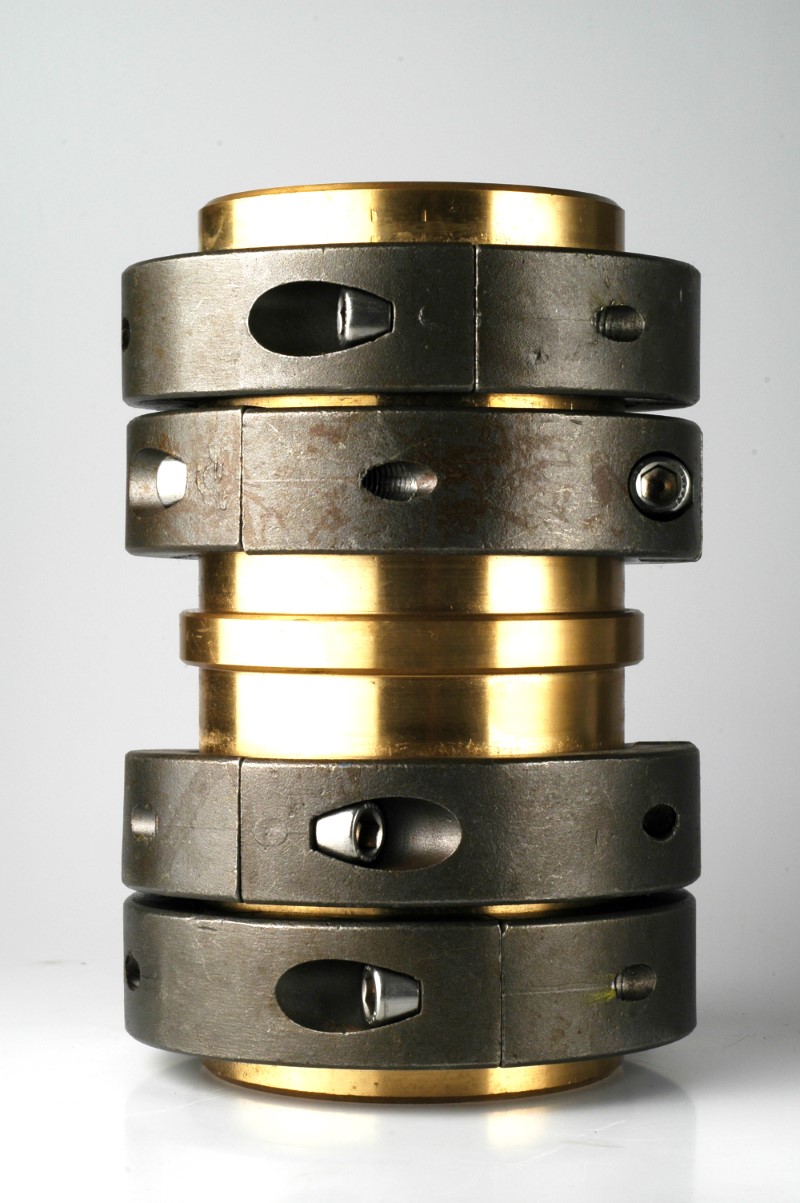

Boreline® Joiner
Boreline® Joiner

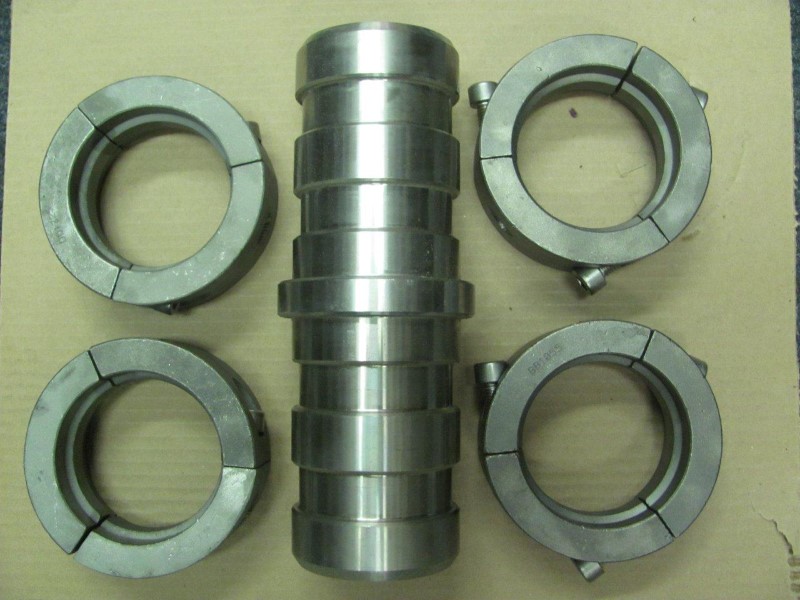

Joiner 316 ss un-assembled
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-joiner
Print Page

Boreline® Lifting Clamps

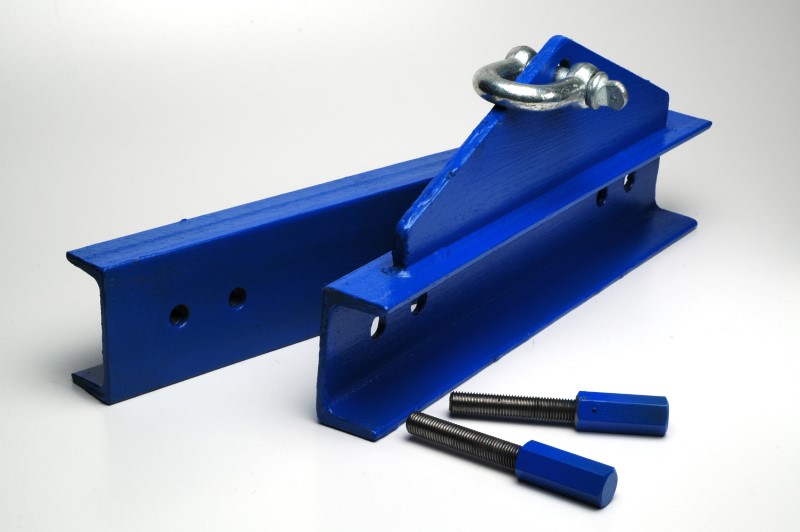

The Boreline® Lifting clamps are utilised for the installation and retrieval of Boreline® . The Boreline® lifting clamp is available in three specific sizes to suit the various sizes of Boreline® Hose. Boreline® Lifting Clamp LC1            1″ – 3″ Boreline® Boreline® Lifting Clamp LC2            4″ – 6″ Boreline® Boreline® Lifting Clamp LC3            6″ – 8″ Boreline®

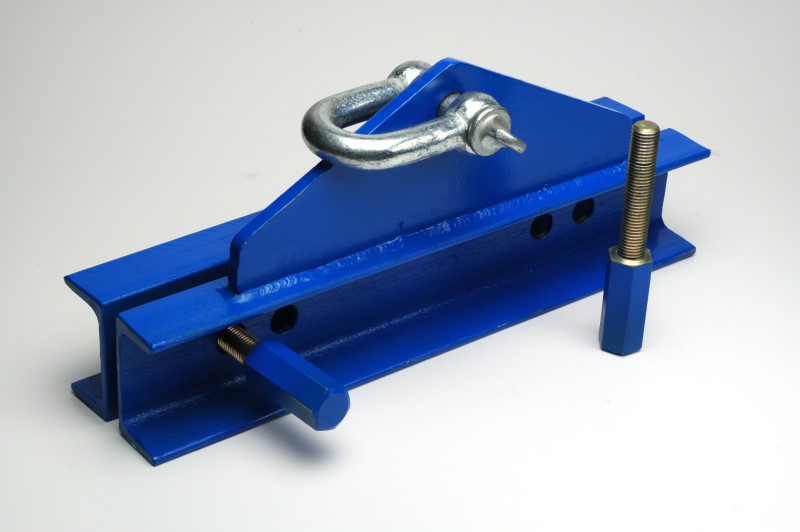

Boreline® Lifting Clamp
Boreline® Lifting Clamp

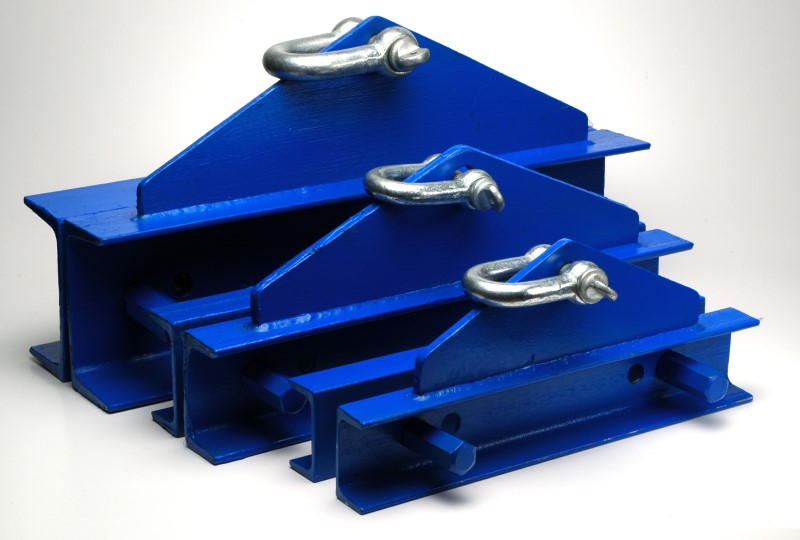

Boreline® Lifting Clamps LC1 LC2 LC3
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-lifting-clamps
Print Page

Boreline® Long Series Allen Key

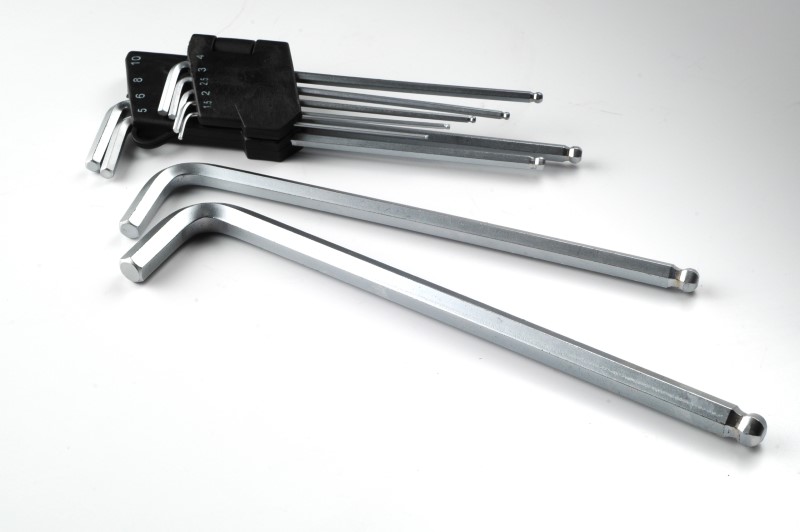

The Boreline® Long Series Allen key are utilised to assemble the Boreline® Coupling Rings.

Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-long-series-allen-key
Print Page

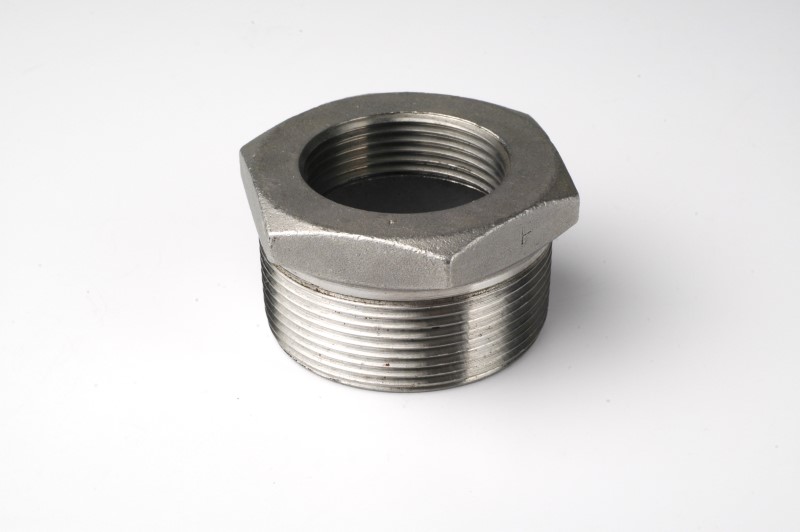

Boreline® Reducing Bush

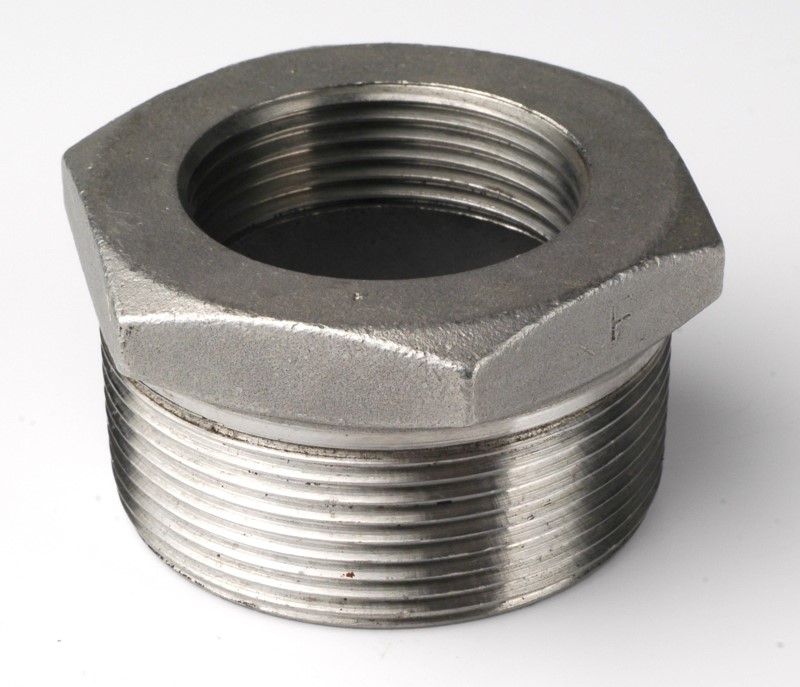

The Boreline® reducing bush is available when the outlet of the pump is one size larger than the Boreline® riser required. These are available in 316SS as standard.

1¼” to 1½
1½” to 2″
2″ to 2½”
2½” to 3″
3″ to 4″
Boreline® Reducing Bush
Boreline® Reducing Bush
Boreline® Reducing Bush
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-reducing-bush
Print Page

Boreline® Rolling Wheel

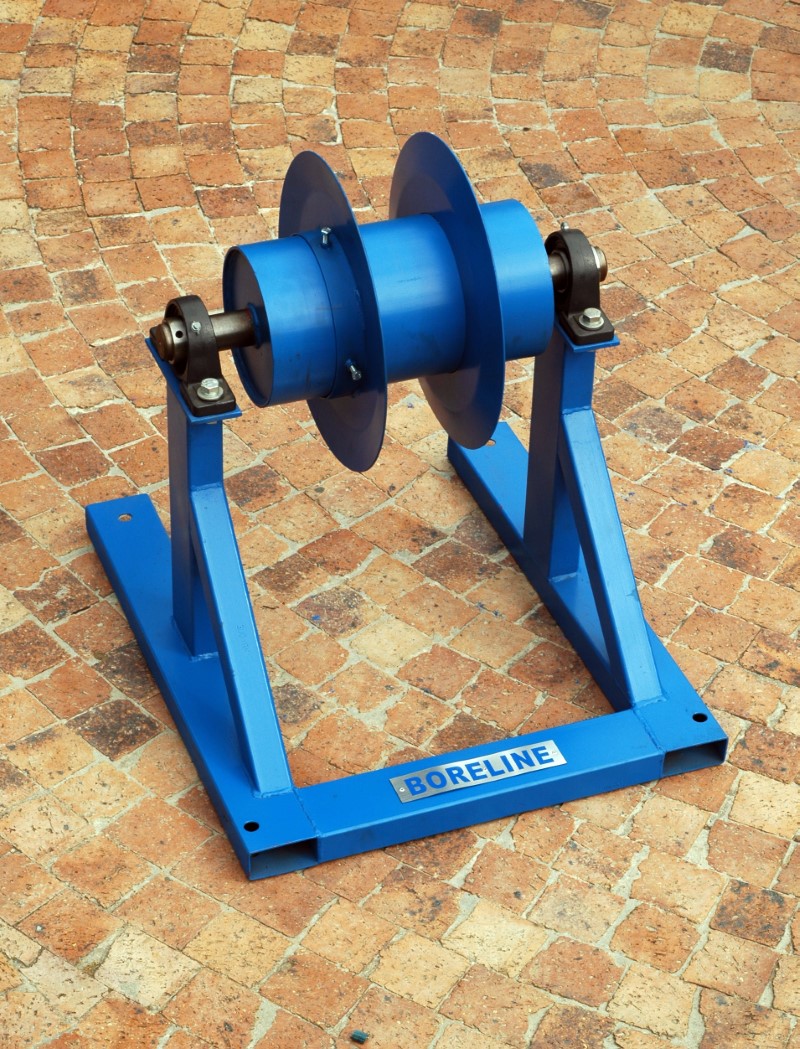

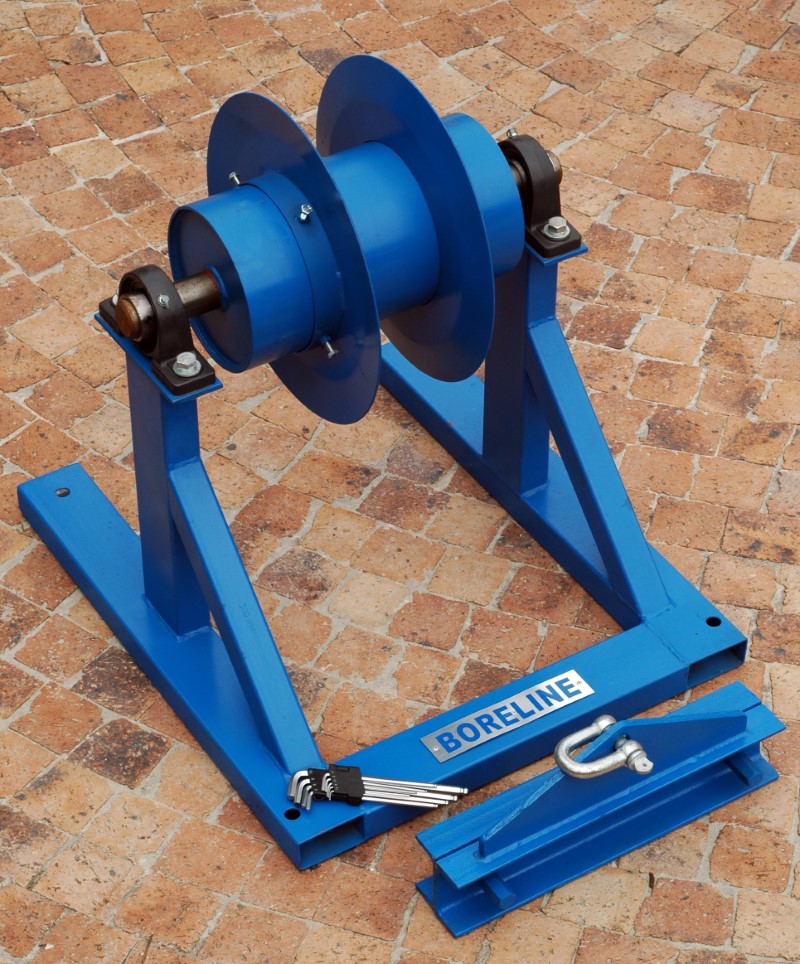

The Boreline® Rolling Wheel is utilised for the installation and retrieval of Boreline® . The Boreline® Rolling Wheel is supplied with adjustable flanges to accommodate the varying flat widths of the Boreline® Riser. This Boreline® Rolling Wheel is suitable for installations up to 200m.

Boreline® Rolling Wheel
Borline® Rolling Wheel

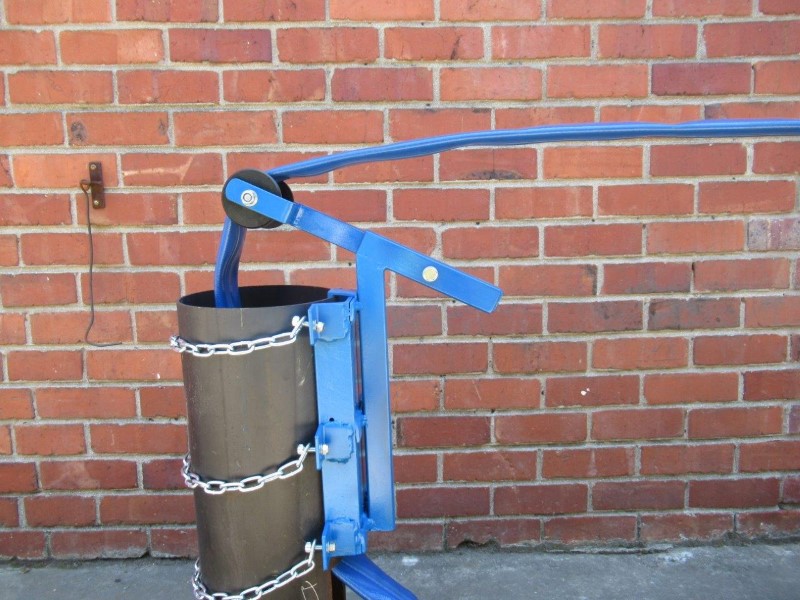

Hand Installation Boreline® Rolling Wheel

For smaller diameter Boreline® , and for depth suitable for hand installations, we also have the Hand Installation Boreline® Rolling Wheel available, which is very versatile and compact.

Hand Roller
Hand Roller

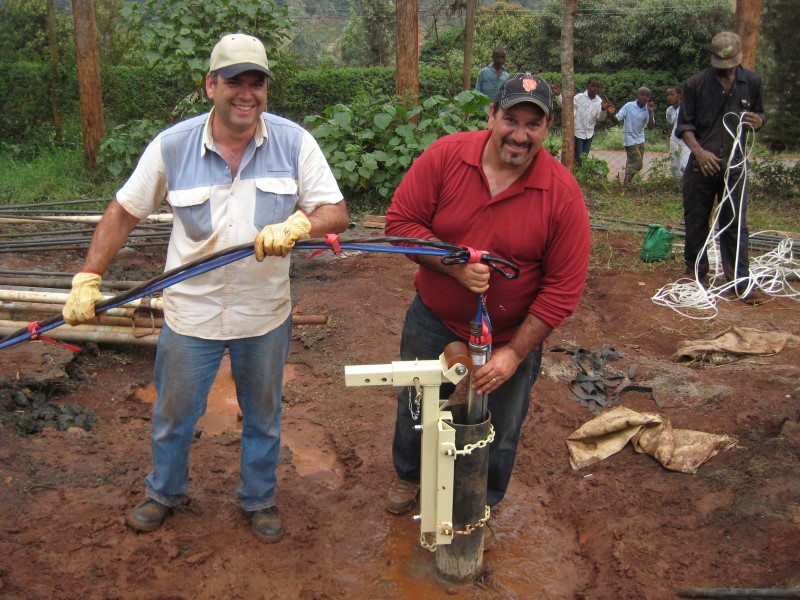

5 Starting to lower pump
5 Starting to lower pump

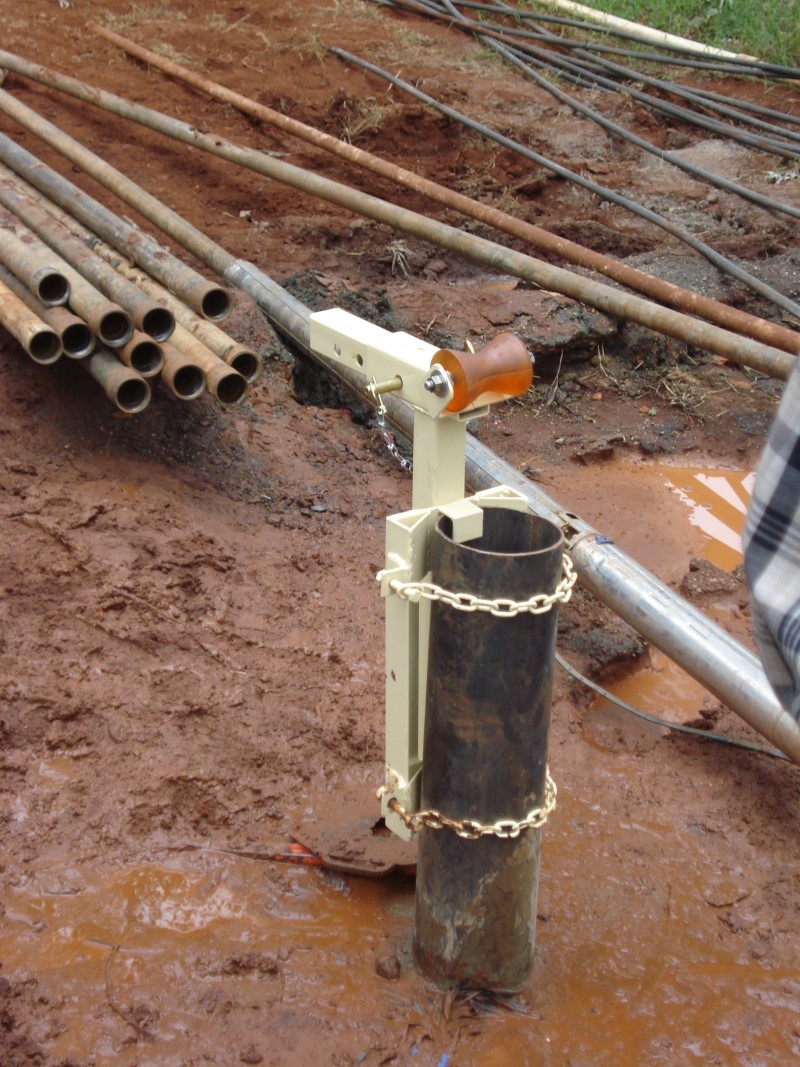

3 Rolling Wheel attached to Well

For customers that have multiple borehole installations on Boreline® we also have a trailer mounted automated Boreline® Spoolers which can be found HERE

Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-rolling-wheel
Print Page

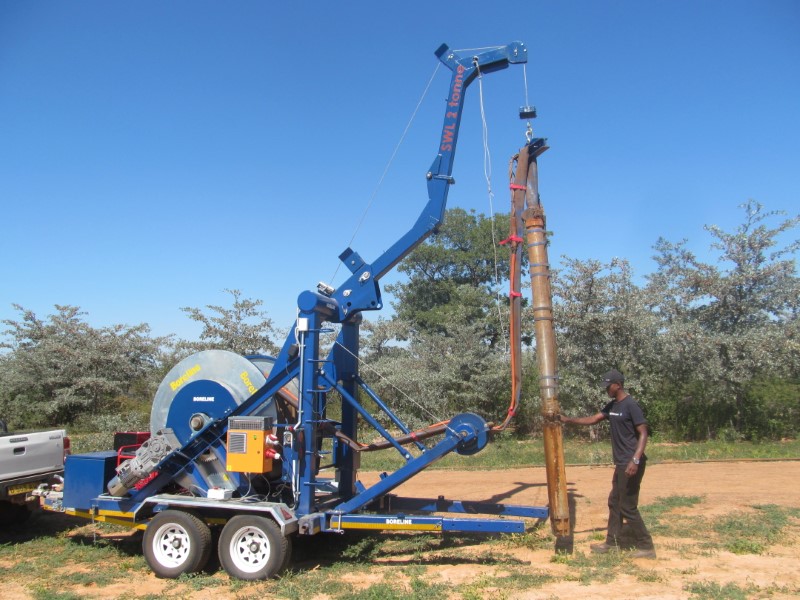

Boreline® Spooler

The Boreline® Spooler is custom built to suit the particular installation needs. They currently have been built in a 1t, 1.5t and 2t version. To be able to assist you with your design, we would need to know what range of Boreline® you would require this for.

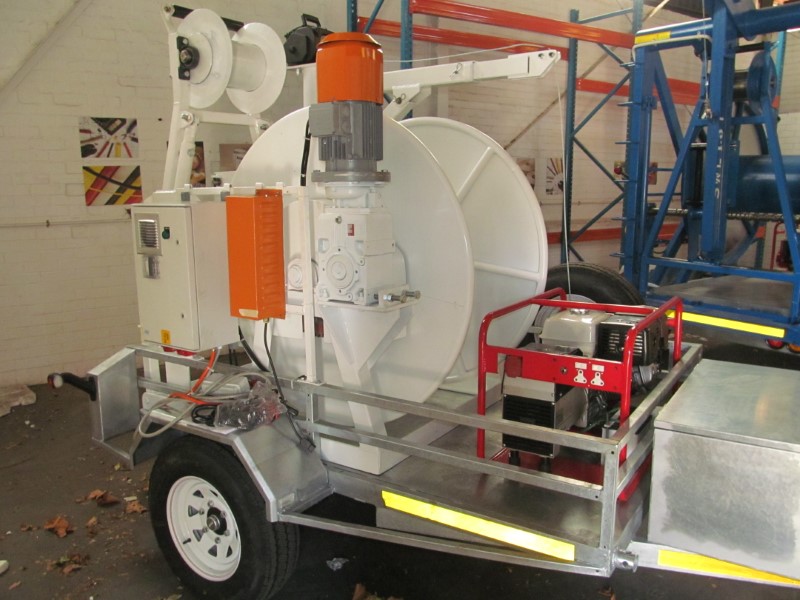

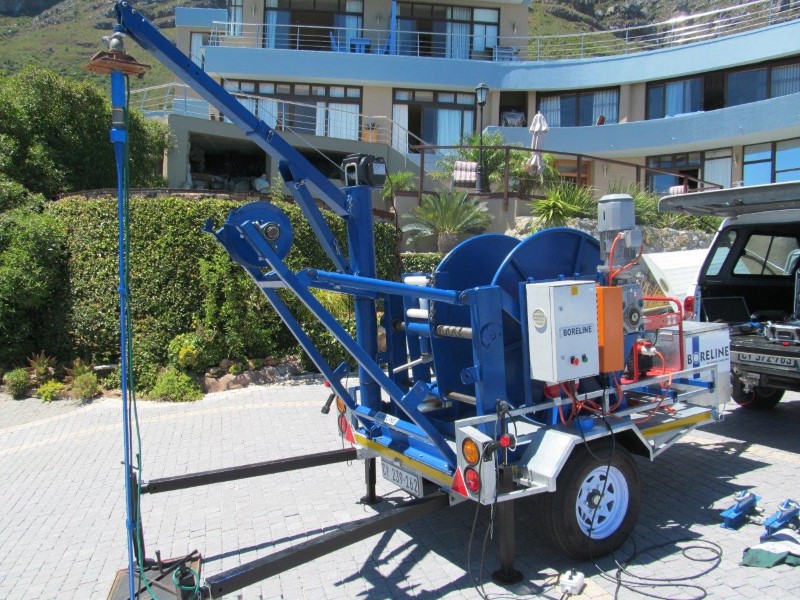

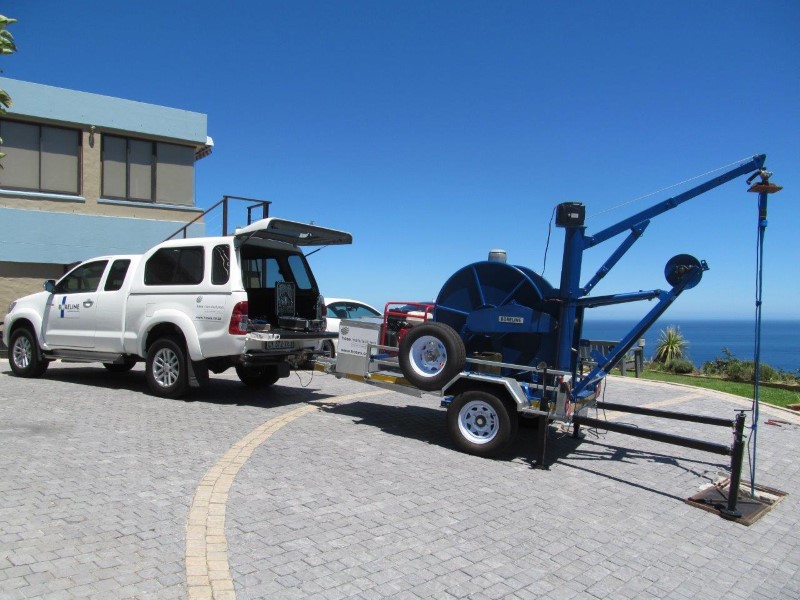

Boreline® 1t Spooler
Boreline® 1t Spooler

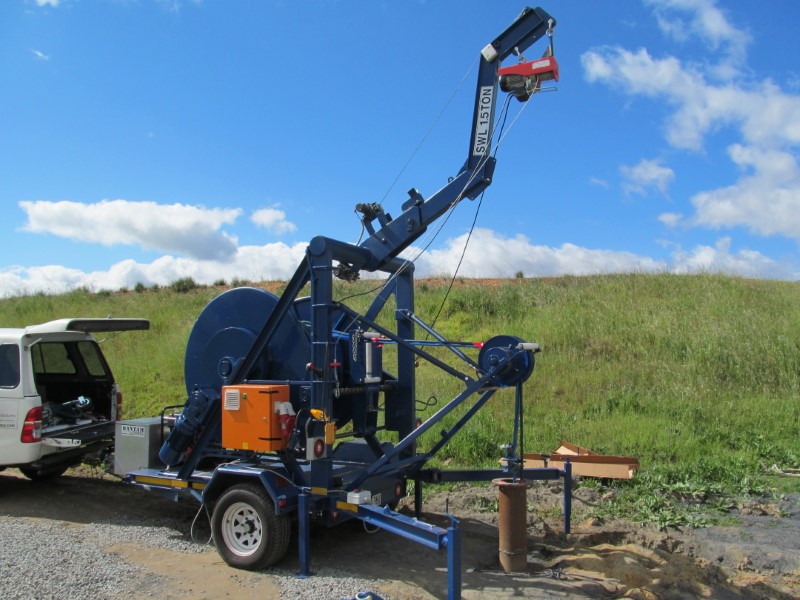

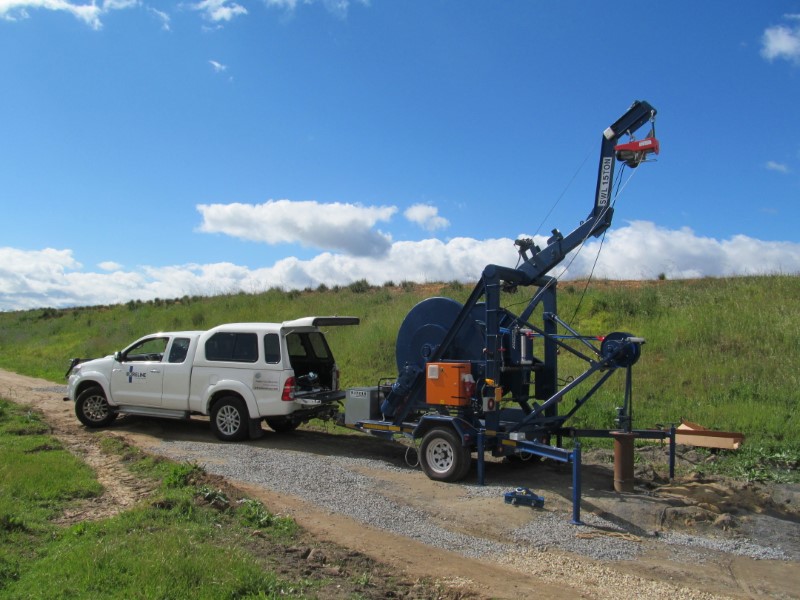

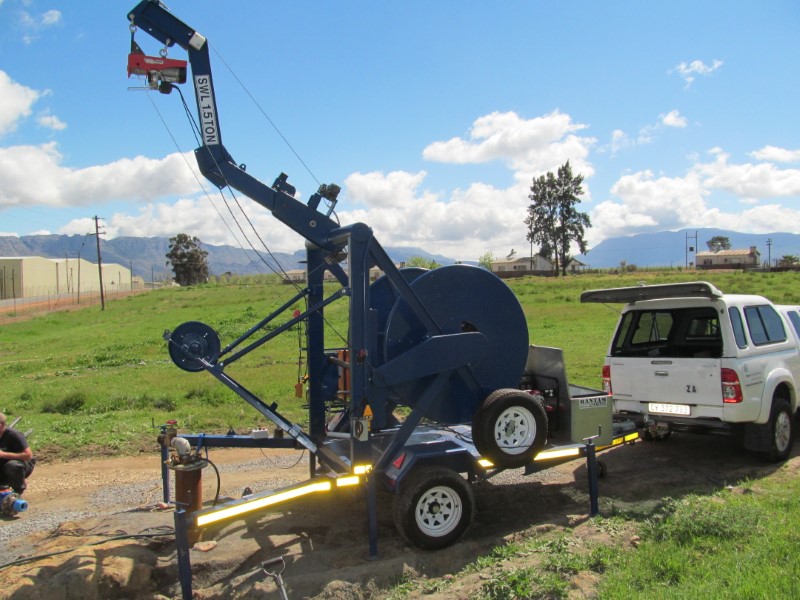

Boreline® 1,5t Spooler

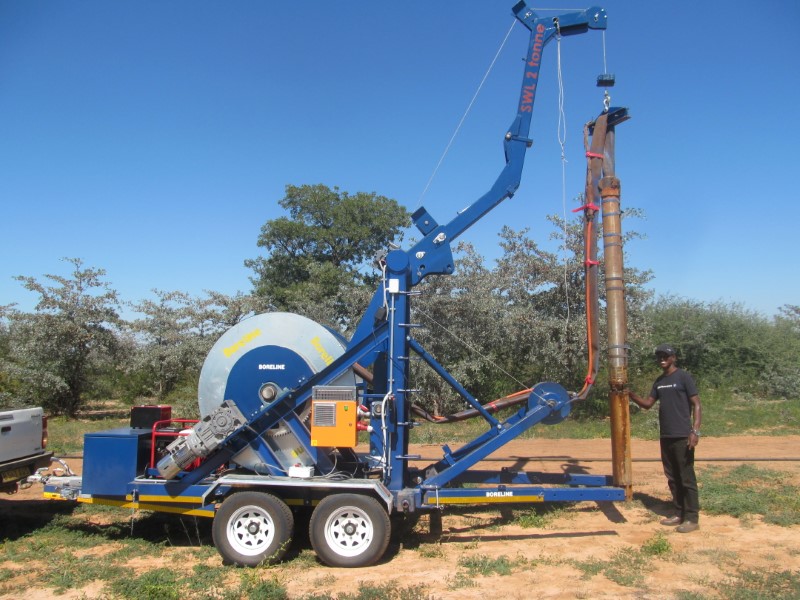

2t Boreline® Spooler
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-spooler
Print Page

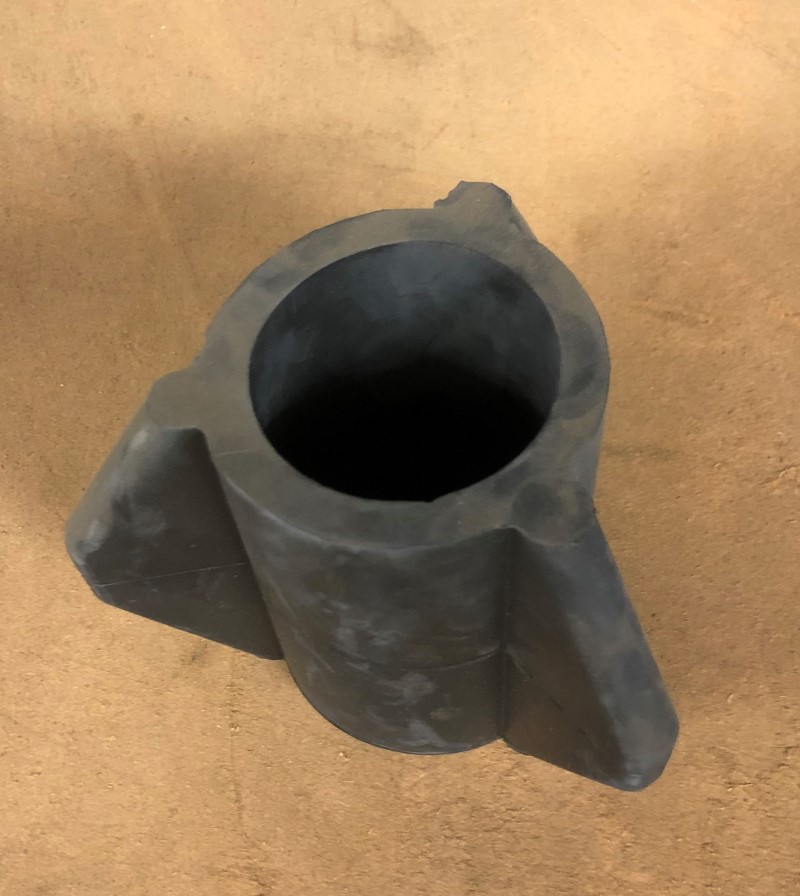

Boreline® Centraliser

In some applications a centraliser might be specified. On smaller diameter Boreline® applications we have a Boreline® Centraliser available.

Boreline® Centraliser
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-centraliser
Print Page

Boreline® Wellheads

Boreline® Wellheads are available in some standard sizes on the smaller diameter Boreline® but are also available in custom designs. The Wellheads can also be supplied in varying materials from Mild Steel to Duplex depending on the application.

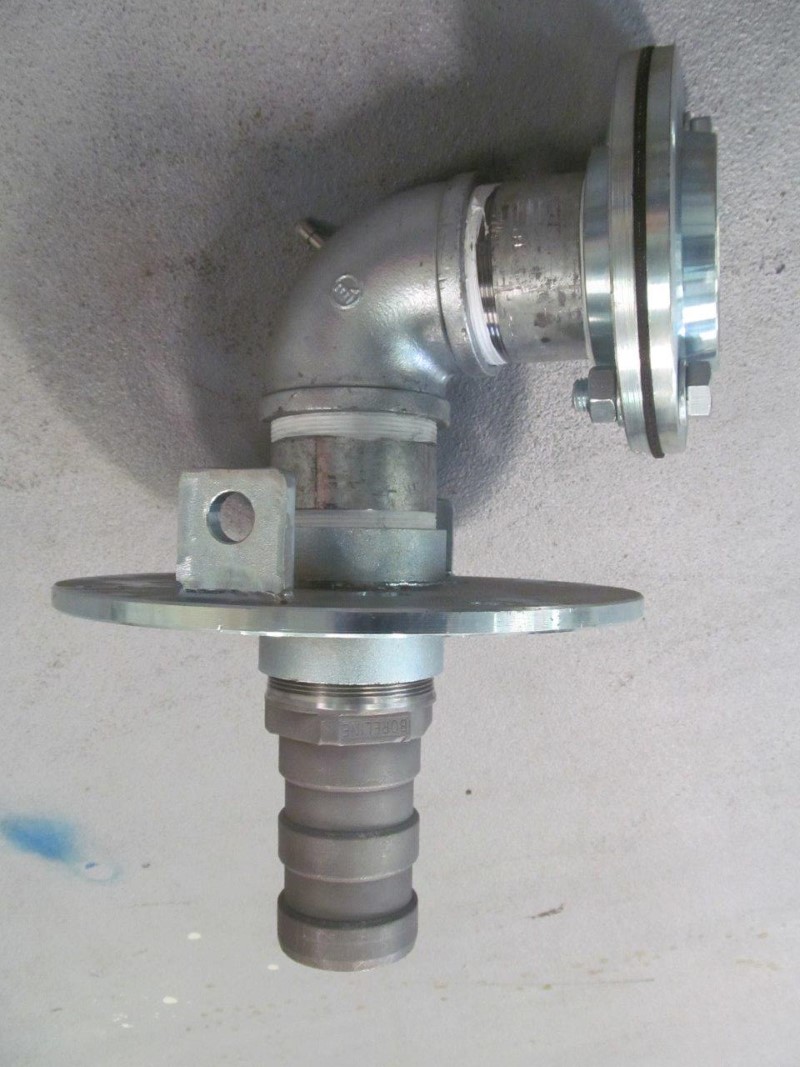

3 inch Boreline® Wellhead

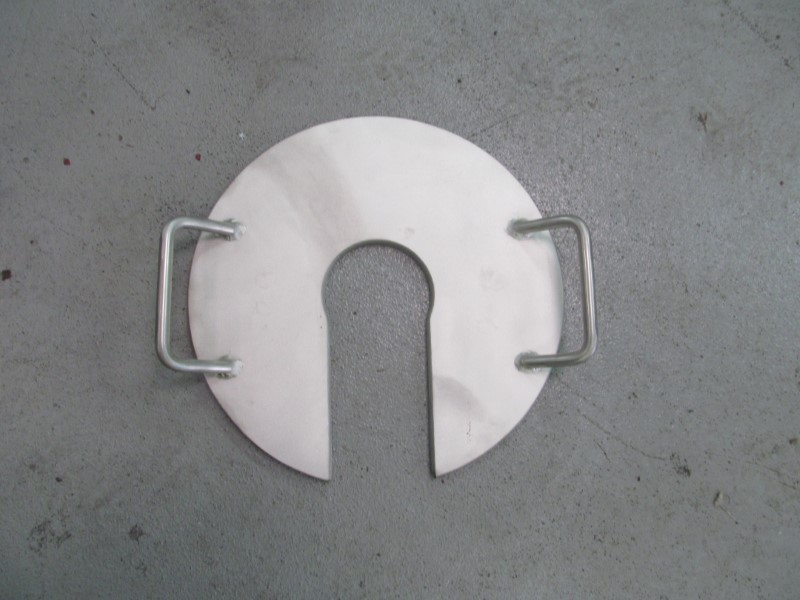

Adaptor Borehole® Casing Plate

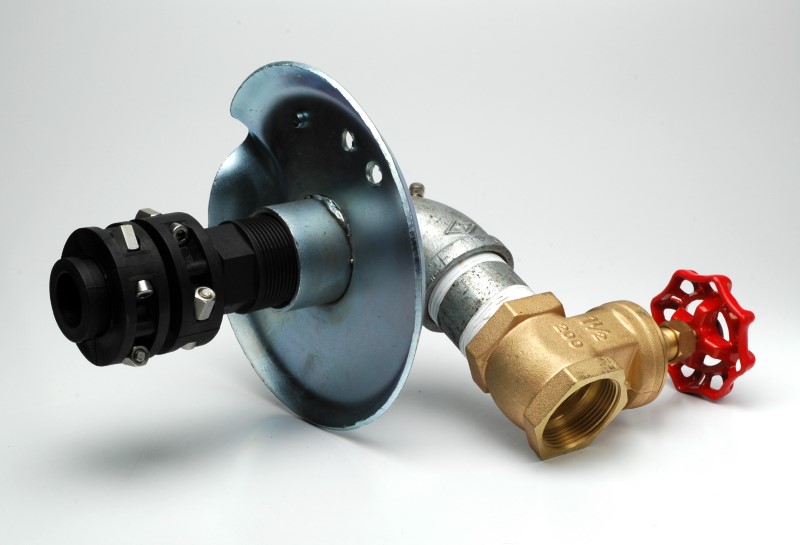

Boreline® Wellhead Assembly

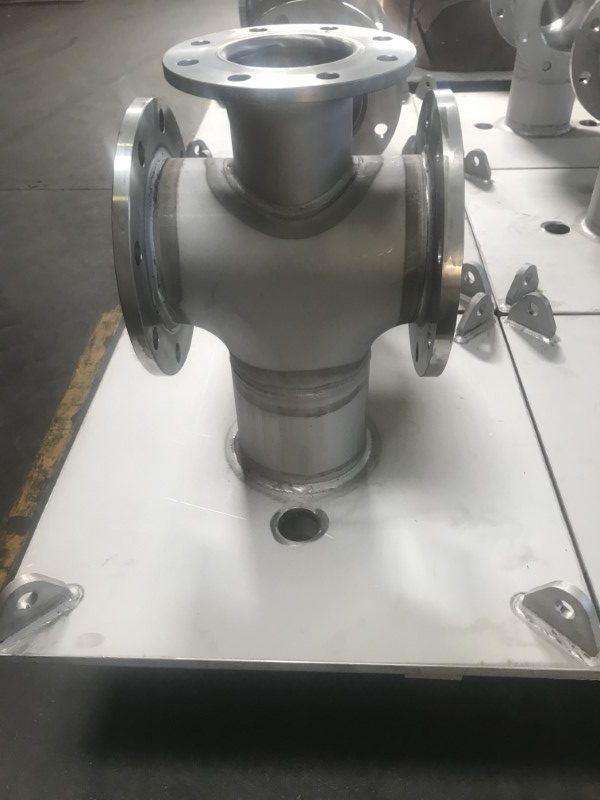

Custom made Wellhead SS

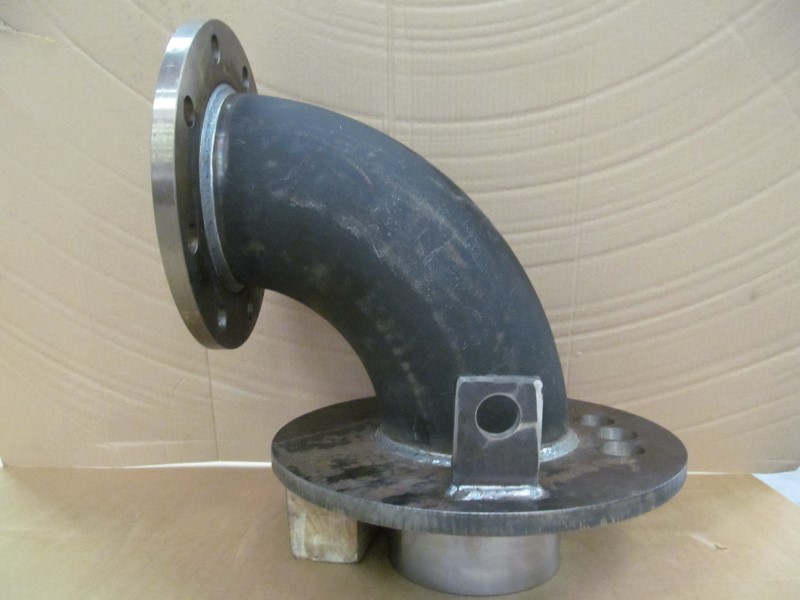

Mild Steel Wellhead

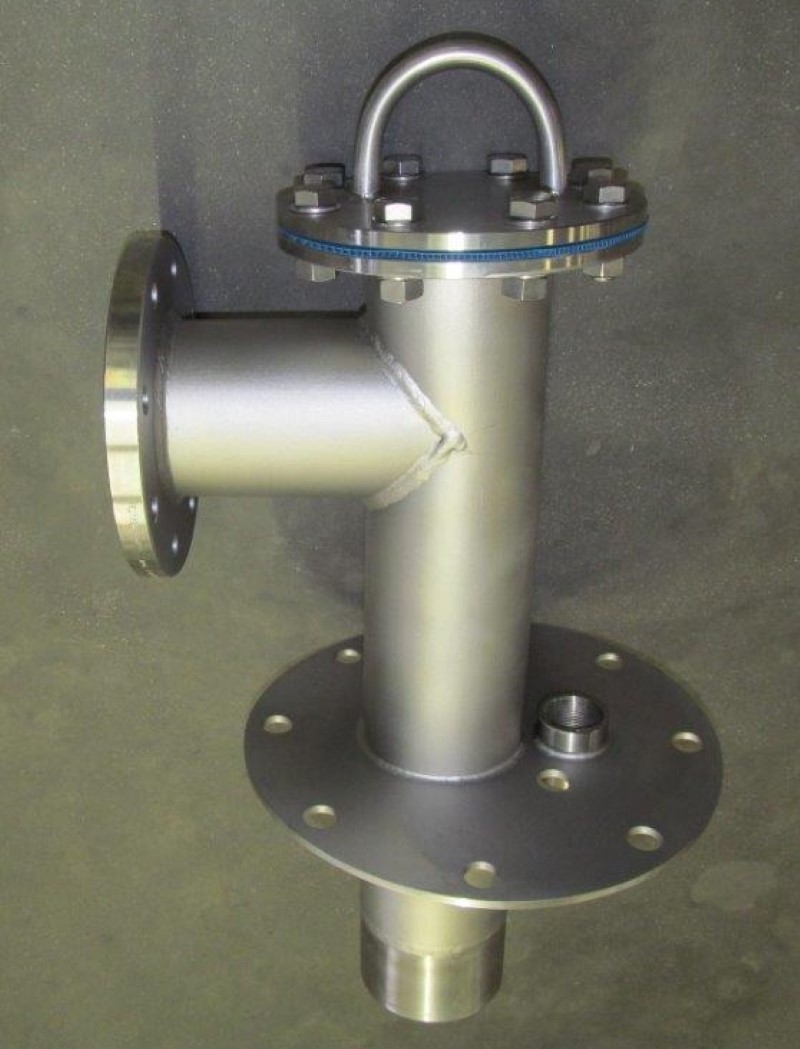

Wellhead 904L SS

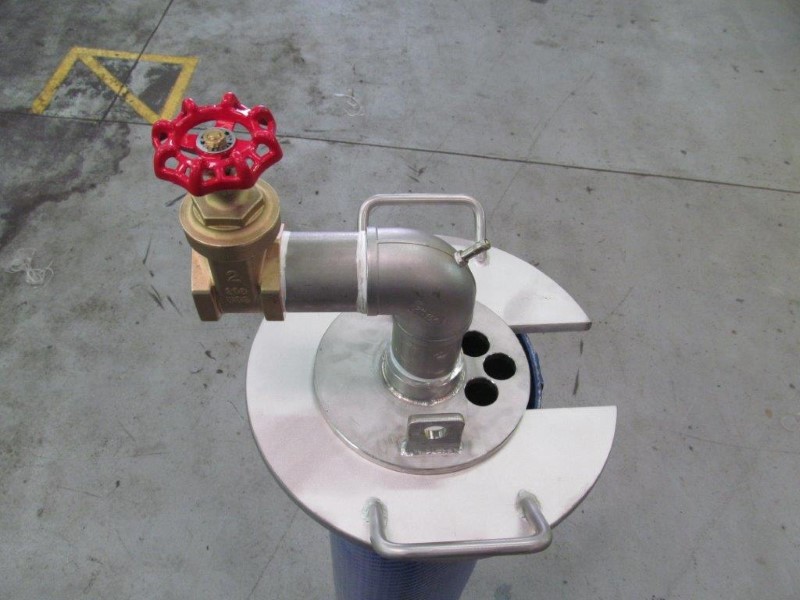

Wellhead with adaptor plate
Boreline® Wellhead Assembly
Copy Product Section Link
https://www.hosessa.com/site/accessories/#boreline-wellheads
Print Page

Layflat Hose Flanged Fitting

Hose Manufactures supply a range of flanged fittings specifically designed to suit their hoses. The flanges can be supplied in any of the standard flange specifications and varying materials depending on the application. These are specifically designed for the high pressure rating of the hoses manufactured by Hose Manufacturers

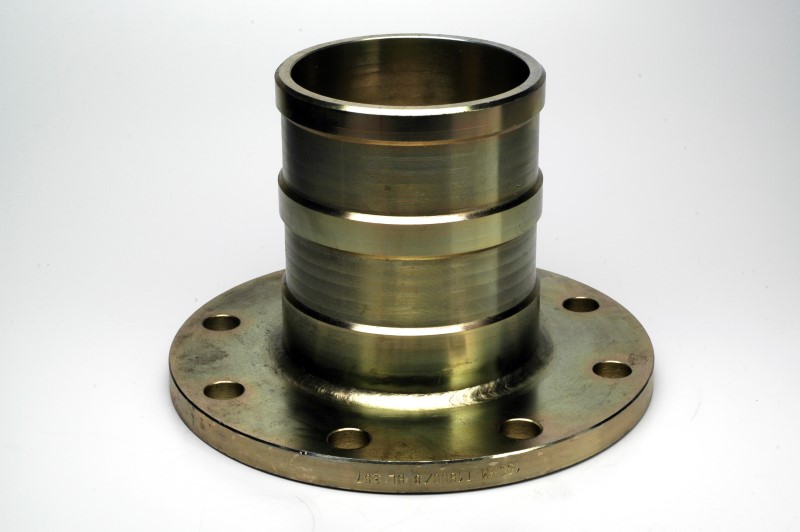

Flanged Mineline Fitting

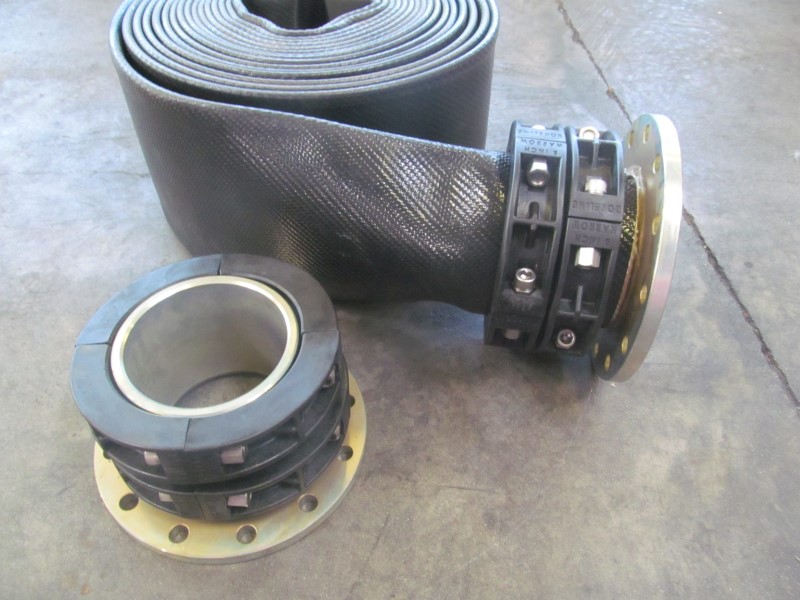

Mineline with MS Flanged Fittings

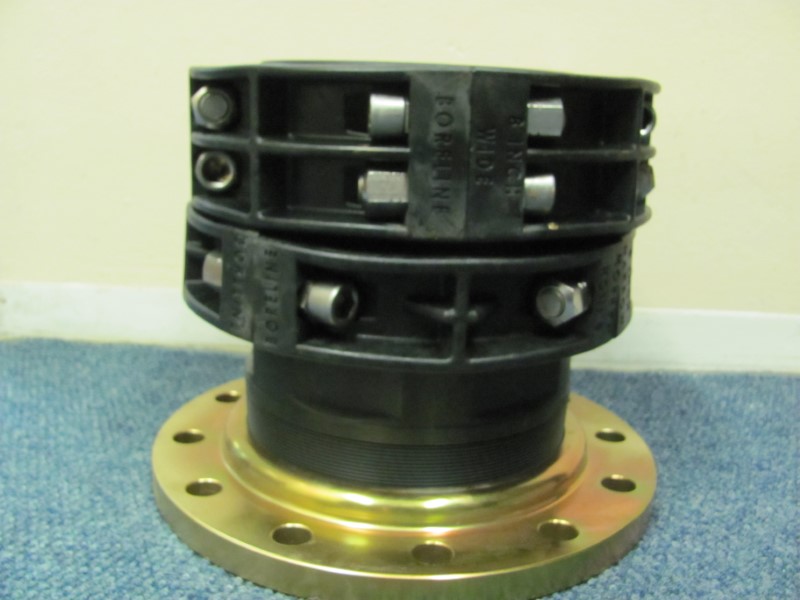

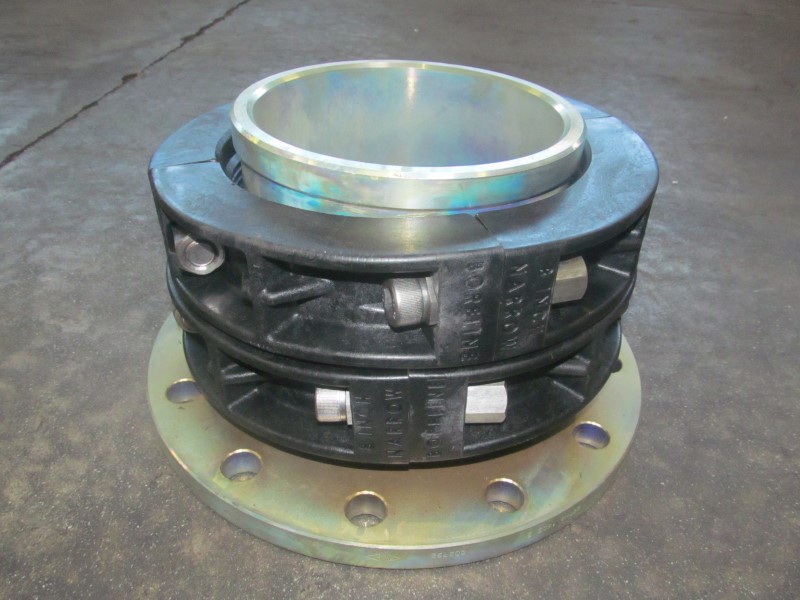

Mineline GRN fitting with screw on Flange

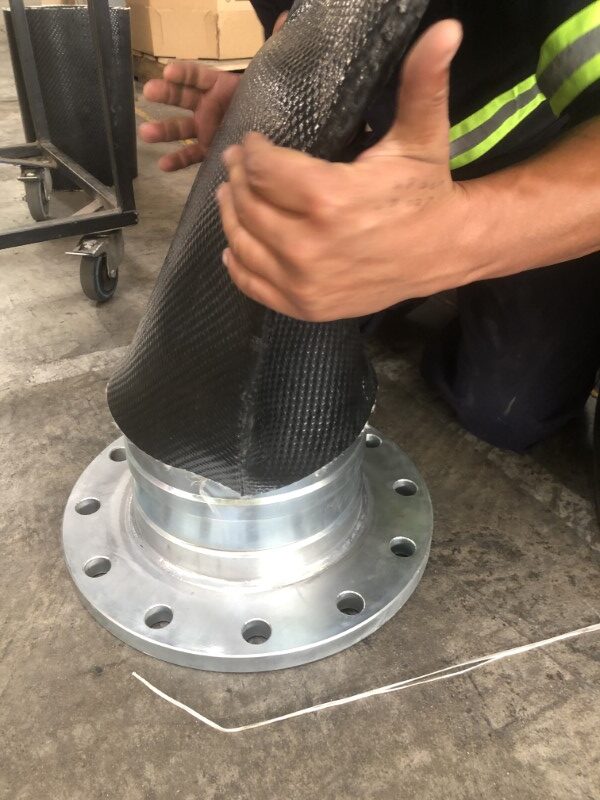

Mineline fitting Flange
Flanged Flanged Fitting
Copy Product Section Link
https://www.hosessa.com/site/accessories/#layflat-hose-flanged-fitting
Print Page

Layflat Hose Joiner

Hose Manufacturers supply a Layflat hose joiner that particularly suit the high pressure rating of the hoses manufactured by Hose Manufacturers.

Mineline Joiner
Copy Product Section Link
https://www.hosessa.com/site/accessories/#layflat-hose-joiner
Print Page

Out & About

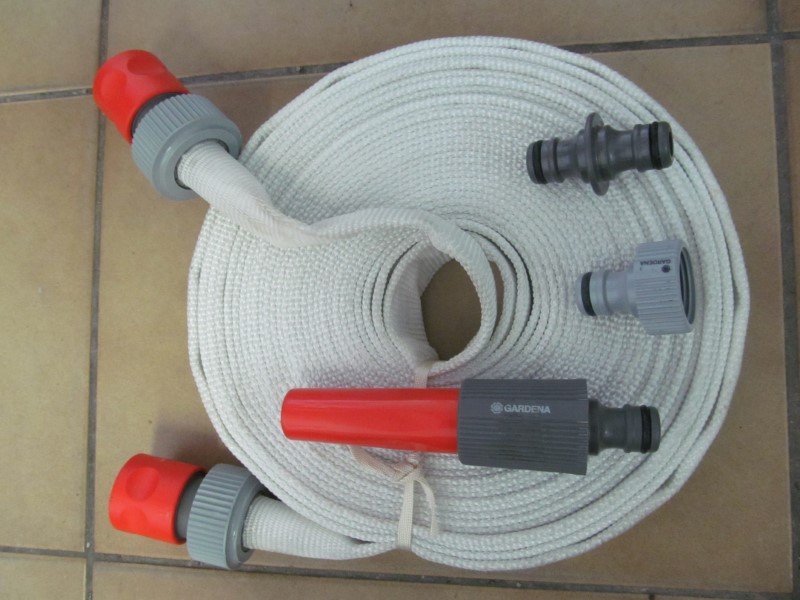

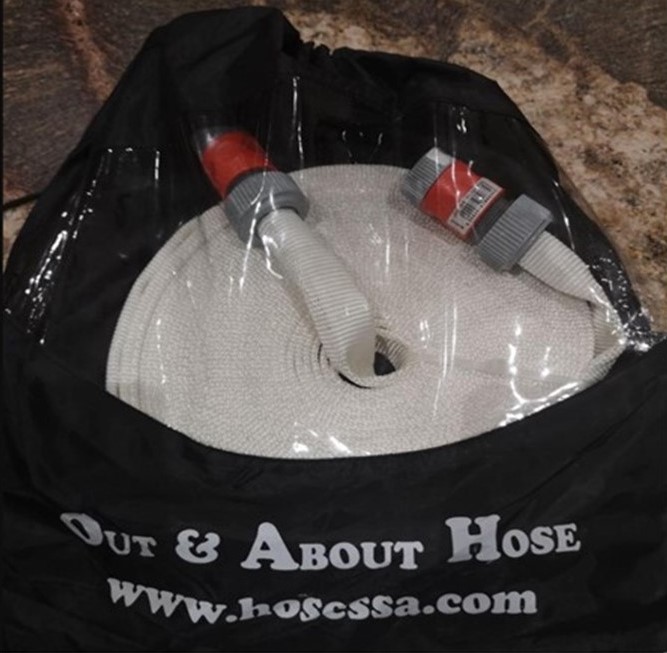

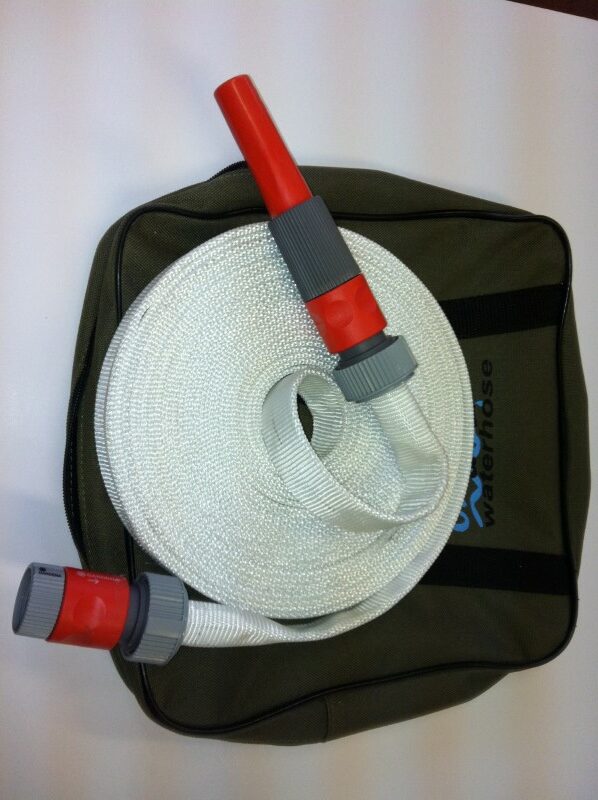

The Out & About hose is ideal for outdoor, caravanning, camping and travel. This 19mm hose is supplied in 15m lengths and suits most garden taps with pressure up to 6 bar. The Out & About rolls up neatly into a small carrier bag for easy storage.

Out & About - Camping Hose
Out & About - Camping Hose
Camping Hose
Out & About - Camping Hose
Camping Hose
Out & About - Camping Hose
